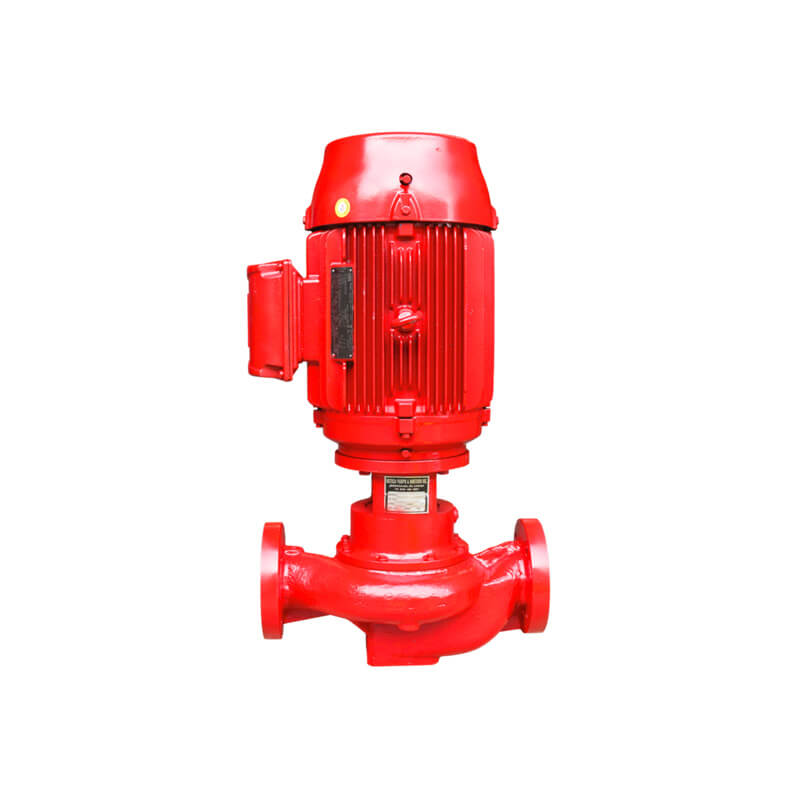

VERTICAL LIN-LINE PUMP
Vertical in-line fire pump has its suction and discharge ends on approximately the same centerline, without changing direction like end suction pump. It also requires a much smaller footprint than the horizontal pump.
INTRODUCTION
- Certificate: UL Listed / FM Approved
- Standard: NFPA 20
- Drive: Electrical motor
- Controller: As standard
- Flow: 150 ~ 1000 gpm
- Head: 40 ~ 150 psi
- Surface: FBE coating as AWWA C550
TECHNICAL DATA
Advanced Tools
| Capacity (gpm) | Approx. speed (rpm) | Ref. |
|---|---|---|
| 150 | 3000 | U0301 |
| 200 | 3000 | U0302 |
| 250 | 3000 | U0303 |
| 300 | 3000 | U0304 |
| 400 | 3000 | U0305 |
| 450 | 3000 | U0306 |
| 500 | 3000 | U0307 |
| 750 | 3000 | U0308 |
| 1000 | 3000 | U0309 |
